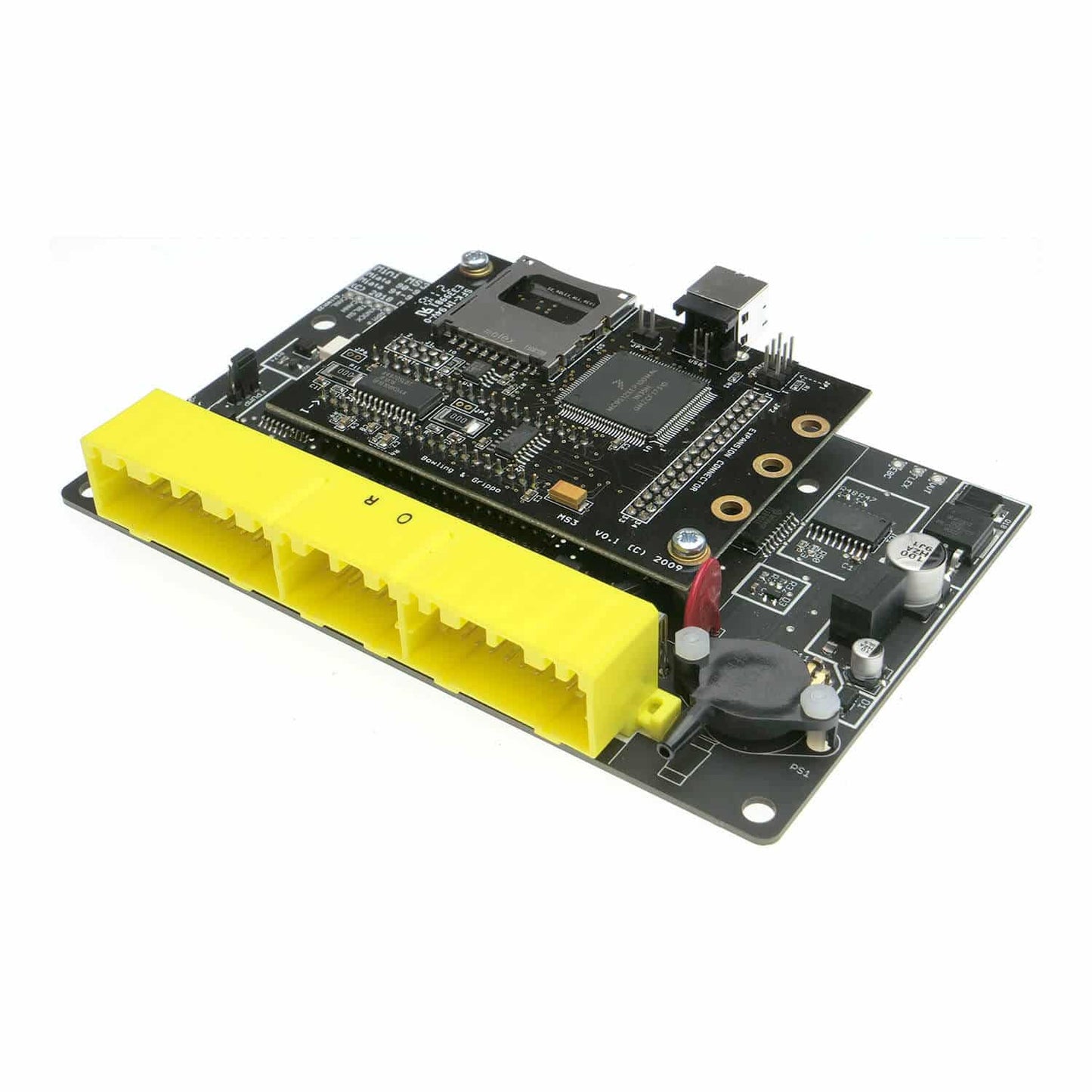

MS Labs MS3 Mini Plug and Play ECU For Mazda MX-5 NA NB
New for 2023, the MS3 Mini has been upgraded with additional outputs, inputs and higher power potential.
Allowing full Sequential Ignition and Injection, with 4 Injector Drivers and 4 Ignition drivers. With the ability to run the high side requirement of the Audi R8 Coil Packs popular in many MX5 Turbo Builds.
With 18 total programmable outputs, 2 of which are spare on/off and 1 spare analogue input (2 if you’re a 01-05 as this has a separate baro sensor input from the engine bay). You’re also able to add Oil Pressure for added safety parameters.
Default Analogue Inputs are MAP, CLT, IAT, TPS, Wideband, Voltage.
This ECU has inputs for the CAM and Crank and can be used with both the CAS or wired to take the separate CAM and Crank sensors for engine swaps.
Each ECU has SD card logging and fits in the factory ECU case.
Each ECU has VVT output, to enable engine swaps for each car. If this isn’t used, it could be re-purposed to drive a methanol injector, for example, or other PWM output.
Product Specifications
• Operating voltage: 7.5-16V DC
• Absolute maximum voltage: 18V DC
• Operating current: 150mA
• Number of processors: 1
• Processor type/speed: 16bit, 50MHz with XGate CoProcessor (Dual Core)
• Enclosure: Installs inside the stock ECU enclosure
• Weight: 0.3kg
• Operating temperature: -10°C to 85°C
